JEE PYQ: Motion in a Straight Line - Question ID f3d492a1be57 (JEE Main 2020)

ID: f3d492a1be57JEE Main 2020Numerical Value

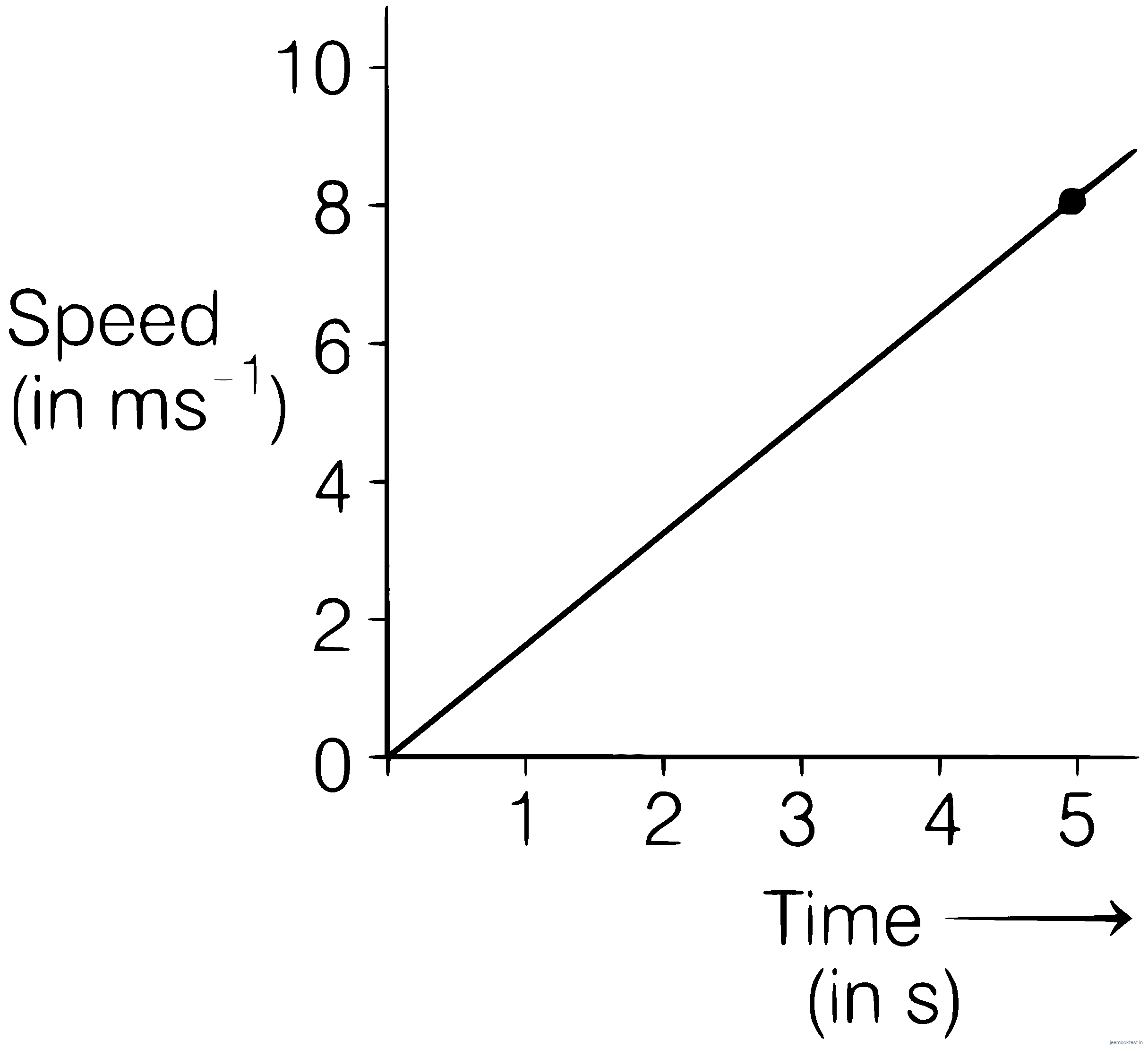

The speed verses time graph for a particle is shown in the figure. The distance travelled (in m) by the particle during the time interval t = 0 to t = 5 s will be________. JEE Main 2020 (Online) 4th September Evening Slot Physics - Motion in a Straight Line Question 90 English
JEE Question illustration f3d492a1be57

Your Answer

Step-by-step Explanation

Distance travelled = Area under speed – time graph

= 12×8×5{1 \over 2} \times 8 \times 5 = 20 m

Related Questions from Motion in a Straight Line

ID: 3bcc2581db85JEE Main 2026

A gas balloon is going up with a constant velocity of 10 m/s10 \mathrm{~m} / \mathrm{s}. When this balloon reached a height of 75 m , a stone is dropped from it and balloon keeps moving up with the same velocity. The height of the balloon when the stone hits the ground is ____\_\_\_\_ m. (Take g=10 m/s2g=10 \mathrm{~m} / \mathrm{s}^2 )

View Solution →
ID: 2e82840fda73JEE Main 2026

The velocity (v)(v) versus time (t)(t) plot of a particle is shown in the figure, for a time interval of 40 s . The total distance travelled by the particle and the average velocity during this period are, respectively

____\_\_\_\_.

JEE Main 2026 (Online) 5th April Evening Shift Physics - Motion in a Straight Line Question 3 English
View Solution →
ID: f97d835af5d4JEE Main 2026

Two cars AA and BB are moving in the same direction along a straight line with speeds 100 km/h100 \mathrm{~km} / \mathrm{h} and 80 km/h80 \mathrm{~km} / \mathrm{h}, respectively such that car AA is moving ahead of car BB. A person in car BB throws a stone with a speed vv so that it hits the car AA with a speed of 5 m/s5 \mathrm{~m} / \mathrm{s}. The value of vv is ____\_\_\_\_ km/h\mathrm{km} / \mathrm{h}.

View Solution →
ID: 2b8b065cdd64JEE Main 2026

A particle starts moving from time t=0t=0 and its coordinate is given as x(t)=4t33tx(t) = 4t^3 - 3t

A. The particle returns to its original position (origin) 0.866 units later

B. The particle is 1 unit away from origin at its turning point

C. Acceleration of the particle is non-negative

D. The particle is 0.5 units away from origin at its turning point

E. Particle never turns back as acceleration is non-negative

Choose the correct answer from the options given below :

View Solution →
